Switch Function Examples: Turn on based on External Trigger

The Air Switch can be set up to turn connected equipment On & Off based on external inputs, such as temperature or occupancy. This is one of the more simple setups and requires 2 Action and 2 Triggers.

The example we will use is a Switch connected to a Fan that needs to run when a store reaches 24 degrees, but then turn off when it falls under 20 degrees.

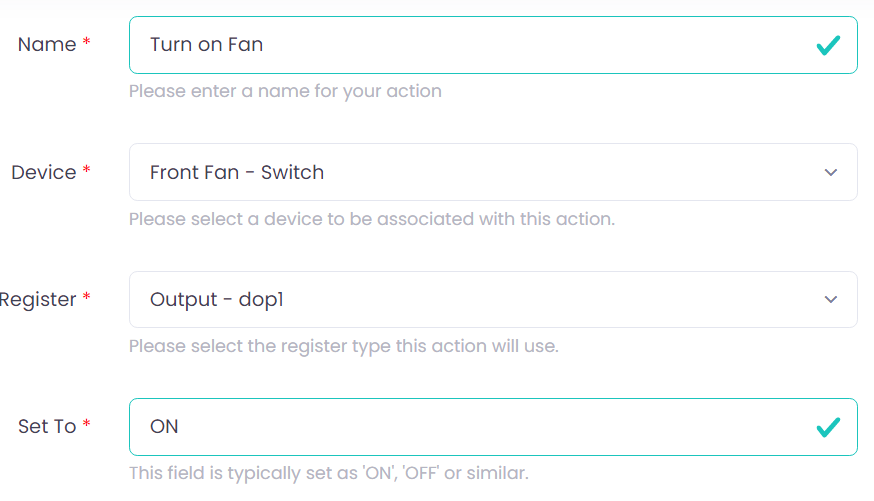

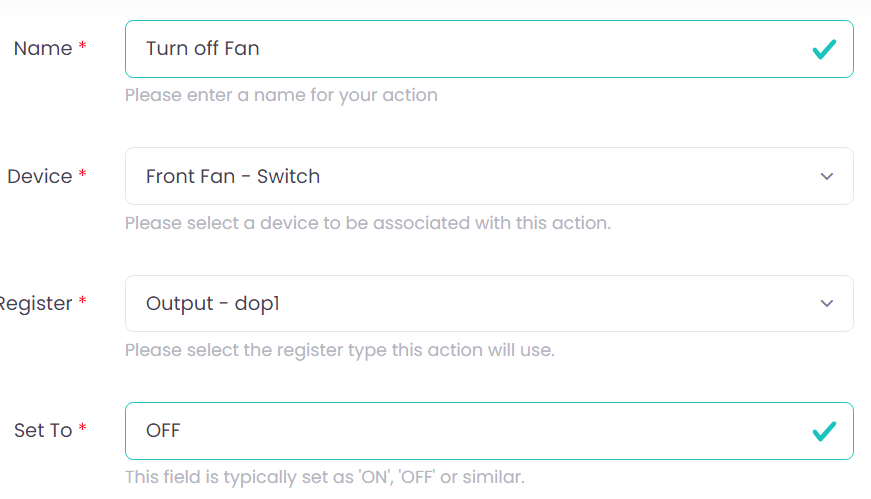

The Actions will need to be set up as follows:

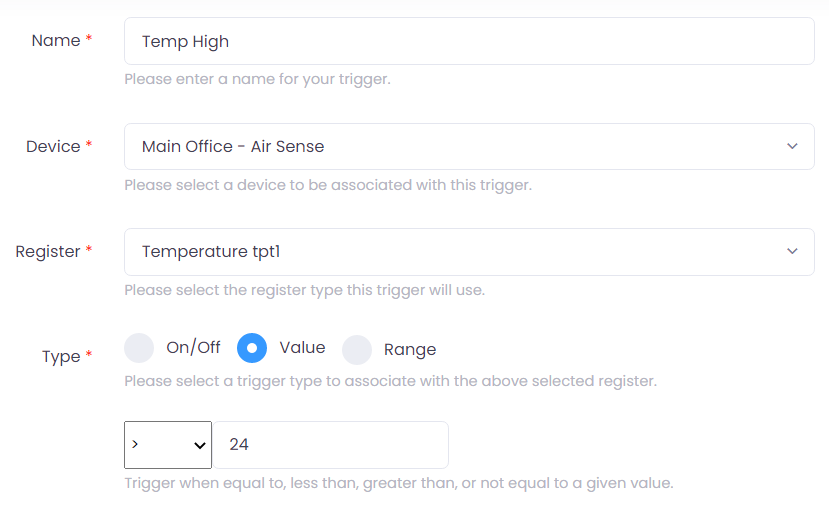

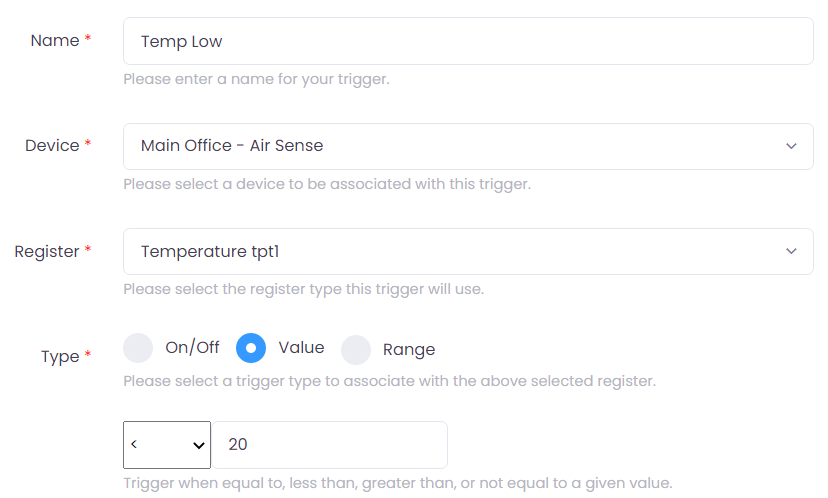

The Triggers will need to be set up as follows:

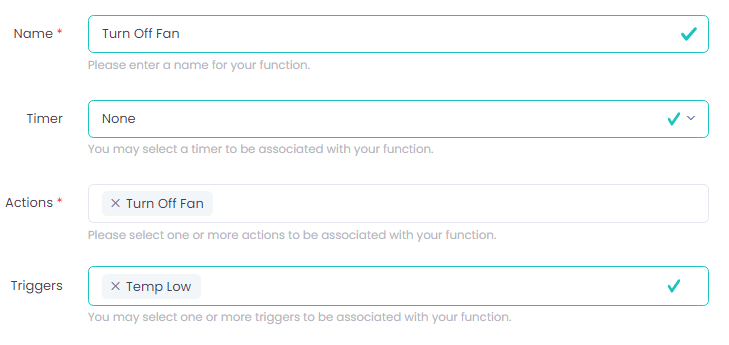

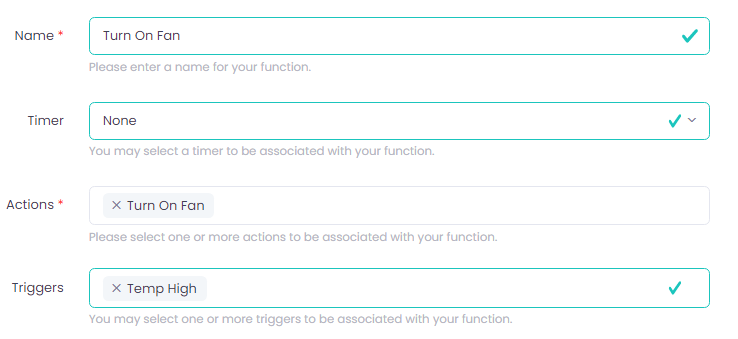

From here, the Functions will be set up as follows:
