Switch Function Examples: Turn on based on Schedule

The Air Switch can be set up to turn connected equipment On & Off based on a timer schedule. This is one of the more simple setups and requires 2 Action and 2 Timers.

The example we will use is a Switch connected to a Fan that needs to run when a store opens at 8:00am and then turn off at 5:00pm, Monday through Friday.

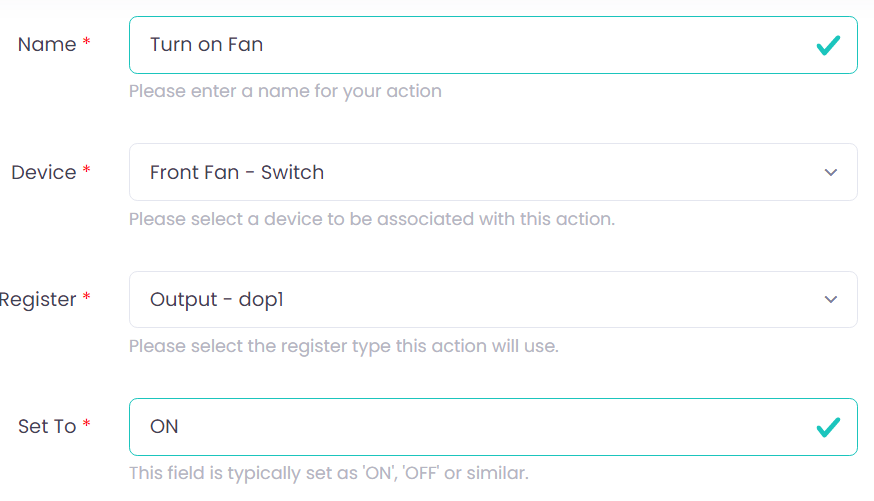

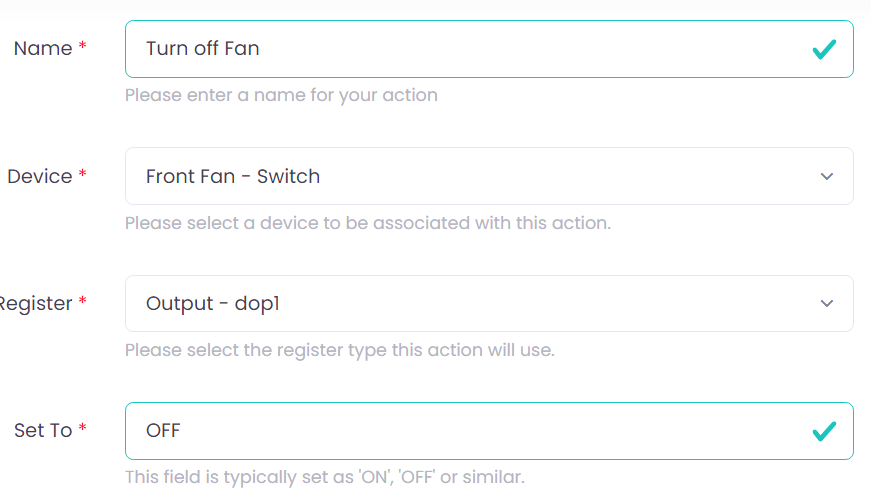

The Actions will need to be set up as follows:

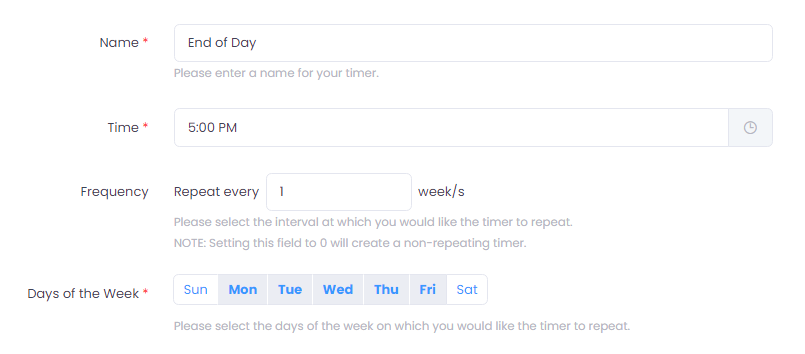

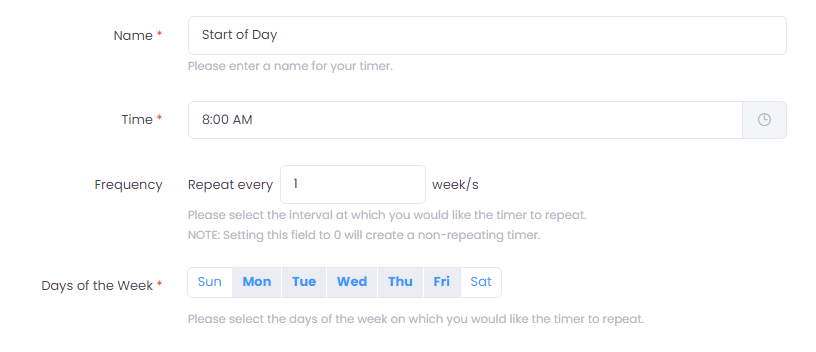

The Timers will need to be set up as follows:

(Note: We only need to use Action Timers here as the signal only needs to be sent once)

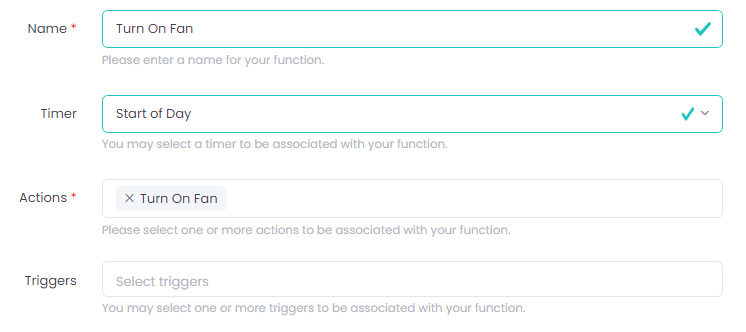

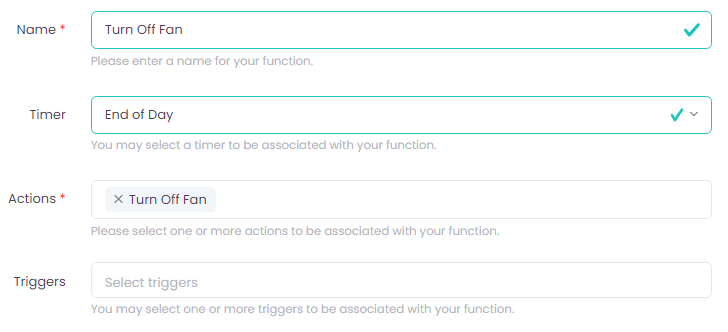

From here, the Functions will be set up as follows:
