Single Phase Setup Guide

This is a summary guide of the important steps to set, while configuring the Eniscope and admin.eniscope.com for a single phase system.

You will find a full installation guide at: https://help.bestsupportdesk.com/solution/articles/4000119067-first-eniscope-installation-2018-

For the Eniscope installation and setup.

And a detailed quick start guide on the Admin.eniscope.com settings at: https://help.bestsupportdesk.com/solution/folders/4000002565

Physical installation

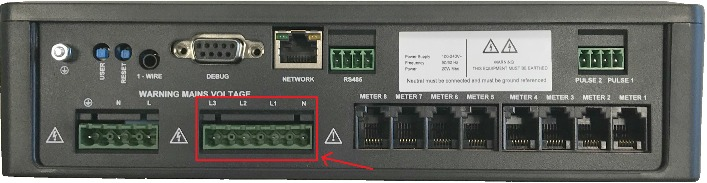

If only using a single phase on 1 Input to the Eniscope, then L1 should be connect to the CT1, while L2 and L3 should be connected to Neutral for the voltage reference.

Eniscope Hub settings

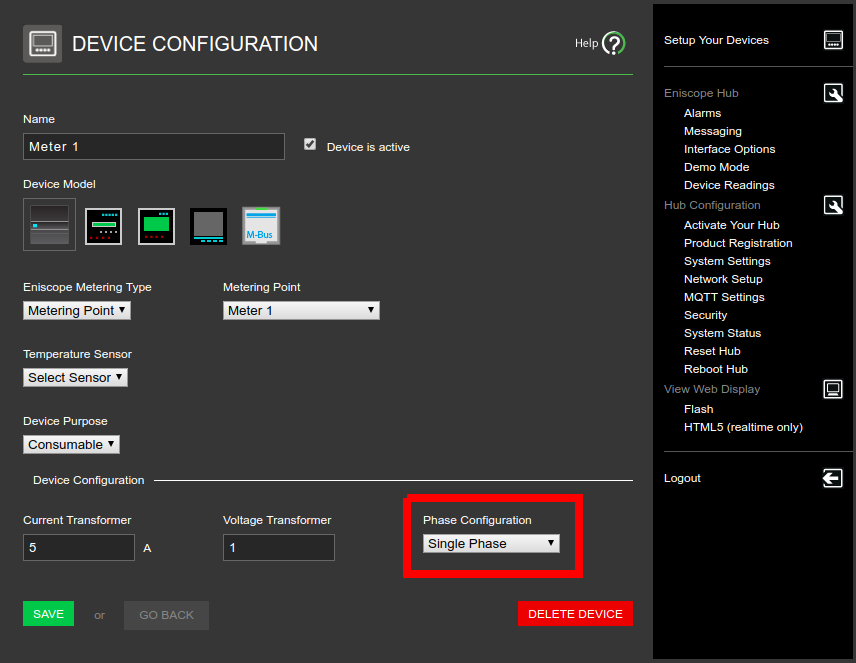

For the Eniscope Hub, you only need to set the Meter 'Phase Configuration' to single phase during setup.

Admin.eniscope.com

Add Equipment

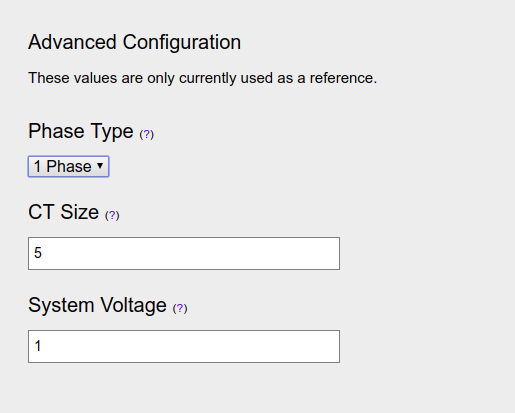

Although only for reference, we recommend you fill in the Advanced configuration box by selecting 1 Phase.

Add Dataview

For the Dataview select  CT1 during the options.

You now have all the important settings for a single phase.

Analytics

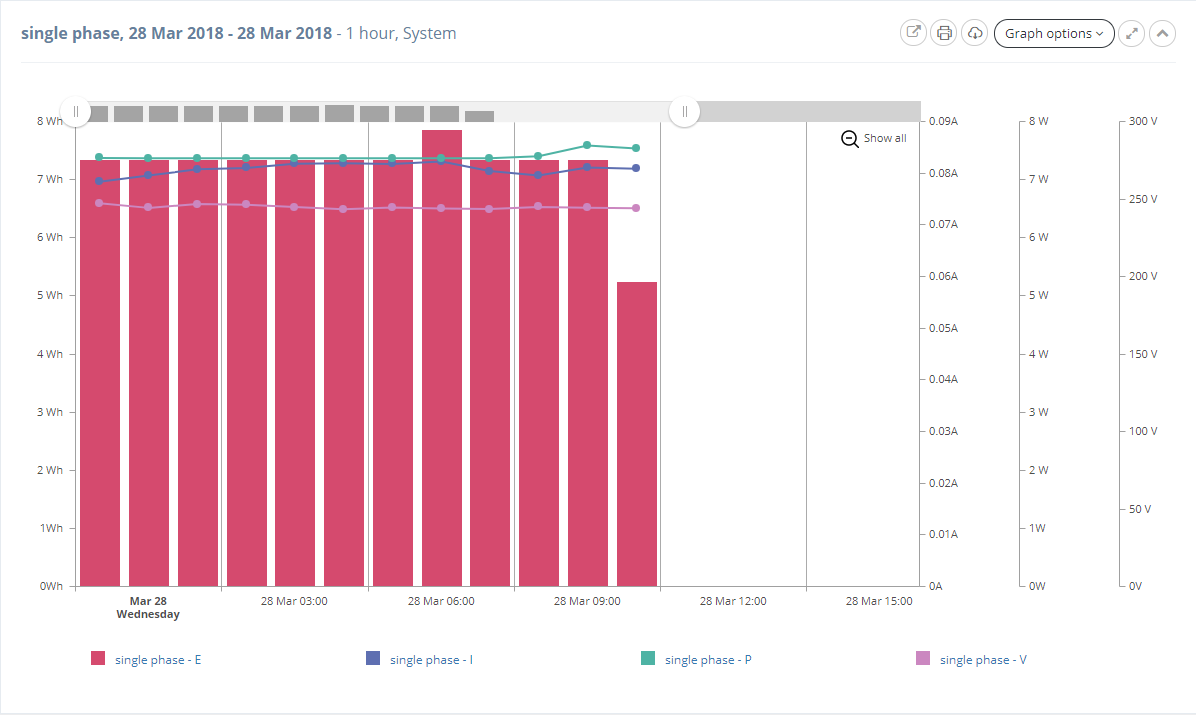

In Analytics, you should select the System option on the options tab. Then continue to select the meters, parameters and time interval of interest.
